3kw Post Hopper Packaging Machine Column Lifting Mixer For Pharm Industry

  • 1
  • 2

Brand Name : Post Hopper lifter

Model Number : LDT

Certification : CE, ISO 9001: 2008, ISO 10004

Place of Origin : China

MOQ : 1set

Price : 10,000 USD to 150,000 USD

Payment Terms : L/C , D/A , D/P , T/T , Western Union , MoneyGram

Supply Ability : 30Sets/Months

Delivery Time : 7-15Working Days

Packaging Details : Wooden Case + Plastic Film

Type : Post Hopper lifter

Application : pharmaceutical, chemical, food and other industries

Condition : New

Brand name : Senmao

Voltage : customize

Dimension(L*W*H) : variable

Warranty : 1years

Weight(Ton) : Variable

Machinery Test Report : Provided

Video outging inspection : Provided

warranty to core components : 1Year

Mateial : SUS304,SUS316L

Delivery : 45-90days

Guarantee period : 1year

Package : wooden case

Contact Now

Post Hopper Lifter , Hydraulic Control Hopper Lifter Machine For Pharm Industry

Products Principle
The machine consists of the pillar, rotating chassis, lift fork, hydraulic system and control system. When working, It puts hopper filled with materials into the fork frame, then lifts operation lever, upgrades hopper to the height that feeding needs, twists the vertical pillar to connect with feeding device, then opens discharge butterfly valve, making the material move to the next process equipment.

Products Features

After the wide absorption of advanced domestic and foreign technology, and taking the specific conditions and requirements of this industry into consideration, our company develops this new equipment. It has proper structure, stable and reliable performance, and is easy to operate. Besides, it has high safety performance, equipped with multiple safety protection, such as rotating brake, and safety lock in the material discharging position.

Products Parameters

Type

 Size of the structure (mm) Net load (kg) Total power (kW)
H H1 H2 H3 W W1 R L1 L2
LDT200 >3500 2500 3500 3350 600 700 1600 550 800 160 1.5
LDT400 >3800 2500 3800 3630 800 700 1800 550 1000 320 1.5
LDT600 >3800 2500 3800 3690 1000 700 2000 550 1100 480 2.2
LDT800 >4000 2500 4000 3890 1000 750 2000 600 1100 640 2.2
LDT1000 >4200 2500 4000 3990 1200 750 2100 600 1300 800 3
LDT1200 >4200 2500 4200 4130 1200 750 2100 600 1300 960 3
LDT1500 >4600 2500 4400 4340 1200 750 2100 650 1300 1200 3
LDT2000 >4800 2500 4600 4620 1200 750 2100 650 1300 1600 3
LDT2500 >4500 2000 4200 4400 1400 750 2200 700 1350 2000 3
LDT3000 >4800 2000 4200 4650 1400 750 2200 700 1350 2400 3

Details Image

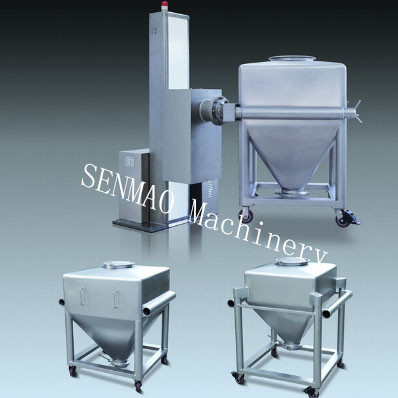

3kw Post Hopper Packaging Machine Column Lifting Mixer For Pharm Industry3kw Post Hopper Packaging Machine Column Lifting Mixer For Pharm Industry

3kw Post Hopper Packaging Machine Column Lifting Mixer For Pharm Industry
